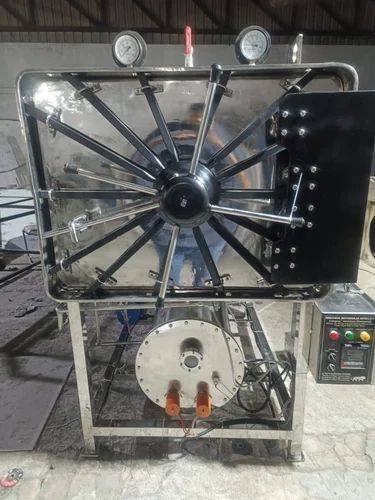

The Horizontal Rectangular Autoclave is a fully automatic industrial sterilization machine designed for efficient and reliable performance. Built with high-quality SS304 material, it is ideal for sterilizing equipment and materials in industrial environments where consistent temperature and pressure control are essential.

This model comes with an inner chamber and jacket made of boiler-grade SS 304, ensuring durability and long service life. The door is fitted with a sturdy SS hinge and locking rod, while the outer insulation is protected with tempered chrome-coated shooting bolts for enhanced operational safety.

The autoclave operates within a pressure range of 15-30 psi and offers selectable operating temperatures of 121°C and 134°C. It is equipped with both automatic and manual operation programs, giving flexibility according to different sterilization requirements.

The power supply requirement is 440V, 3 phase with neutral and ground earthing. For user safety and smooth operation, the machine includes a PIC touch display for operating programs and a door protection system that prevents opening when pressure is present inside the chamber.

Key Features:

• Water level indicator.

• Vacuum pump operated by water.

• Low water level cut-off system for general safety of the element.

• Heater on/off indicators.

• Boiler mirror for water level monitoring.

• Spring safety valves for jacket.

• Pressure and compound gauge for jacket and chamber.

• Glass wool insulation.

• Automatic and manual operate programs.

• Power cut off system.

• Pressure cut off system.

• Automatic cycle complete.

• Alarm buzzer after cycle complete.

• Water fill and drain manual in boiler.
